AGRIESO layer cage systems for commercial egg farms: automatic feeding, drinking, egg collection & manure removal. 3-8 tier options, galvanized steel.

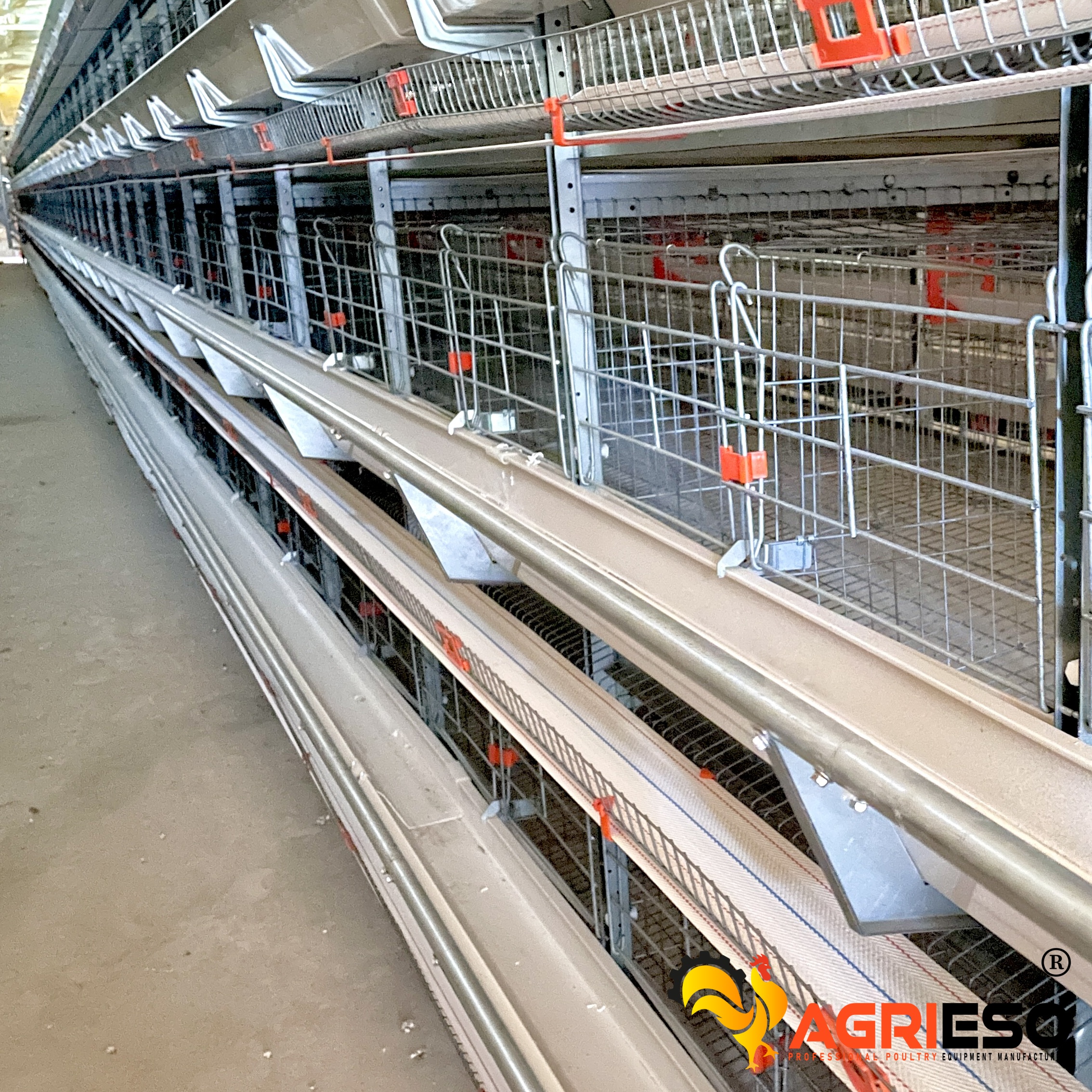

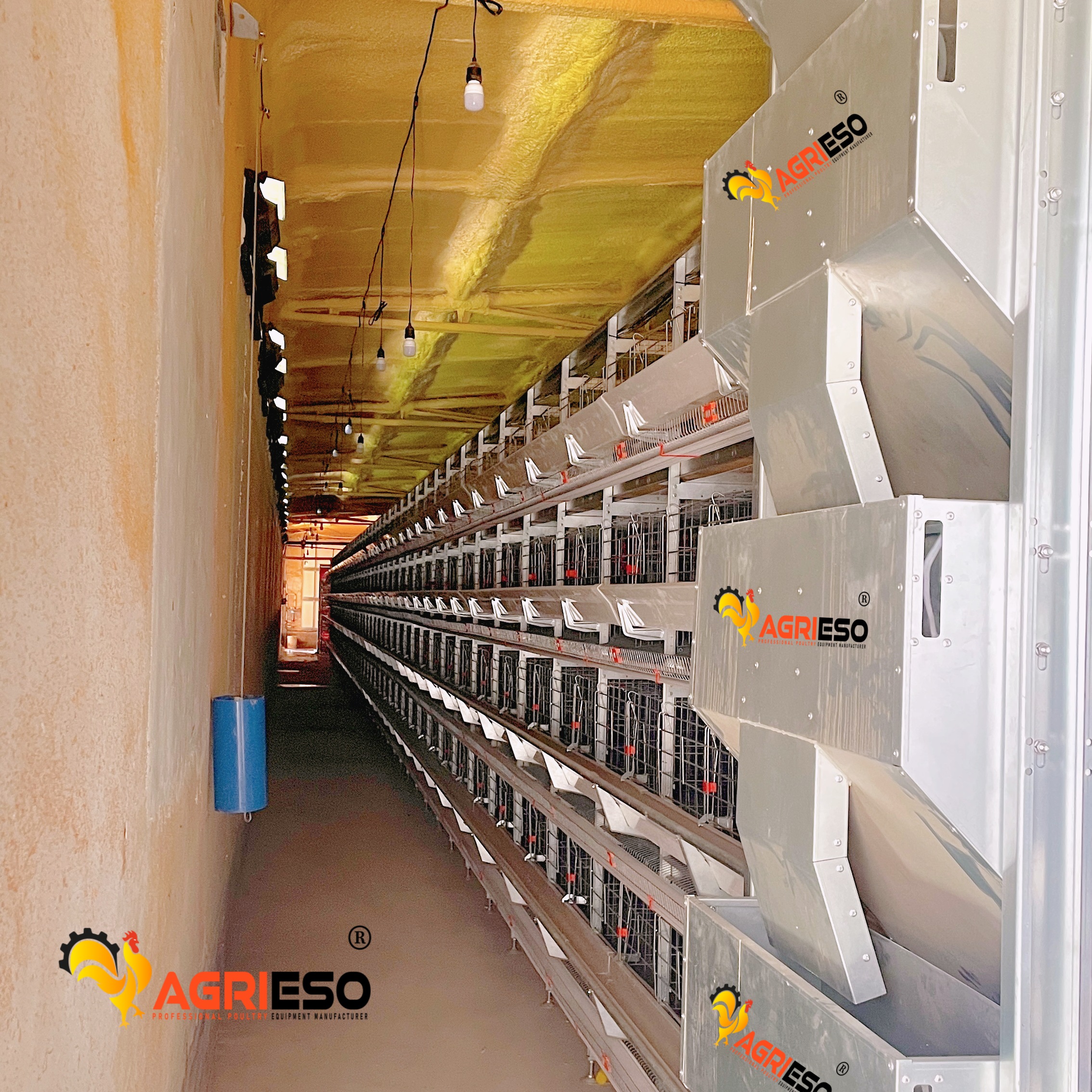

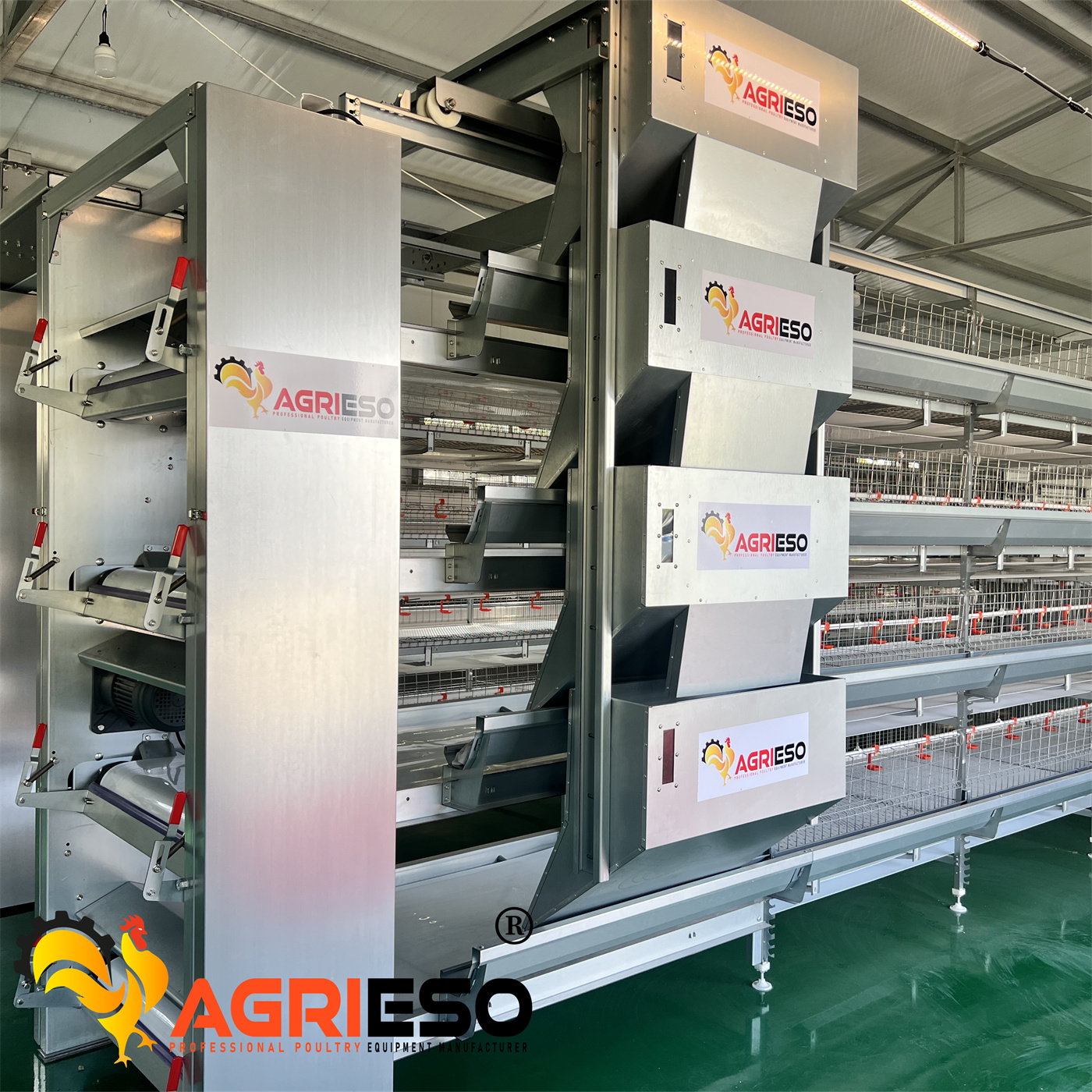

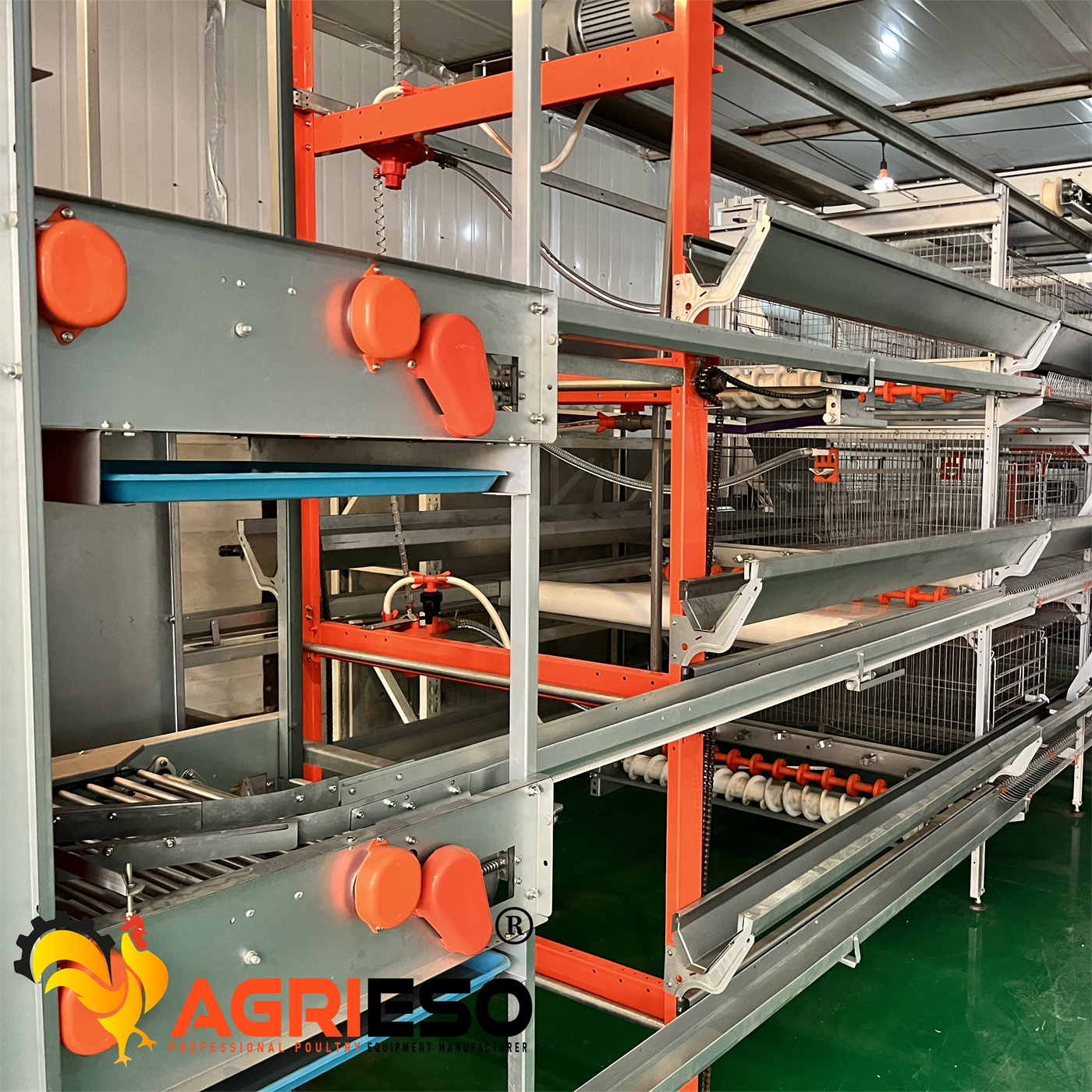

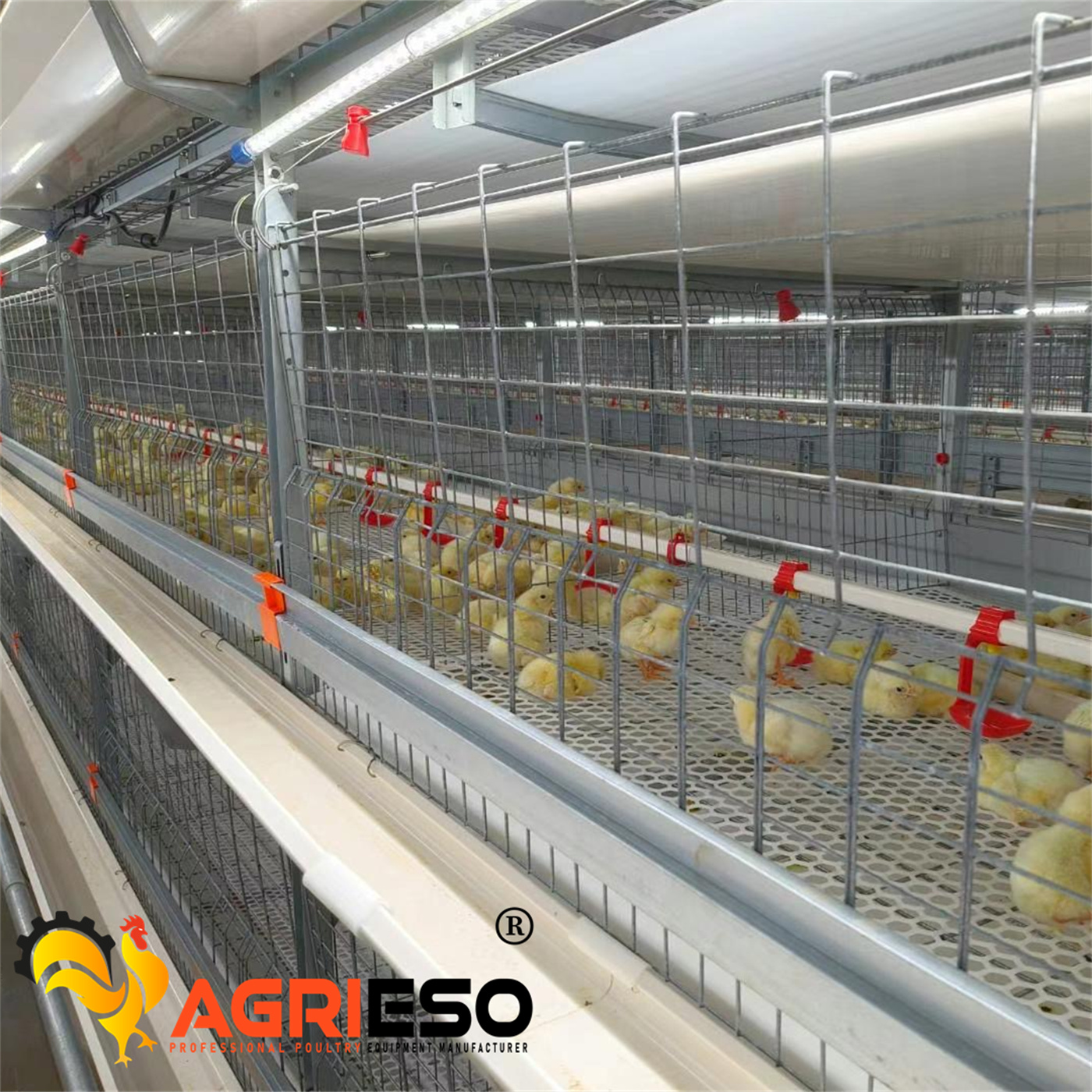

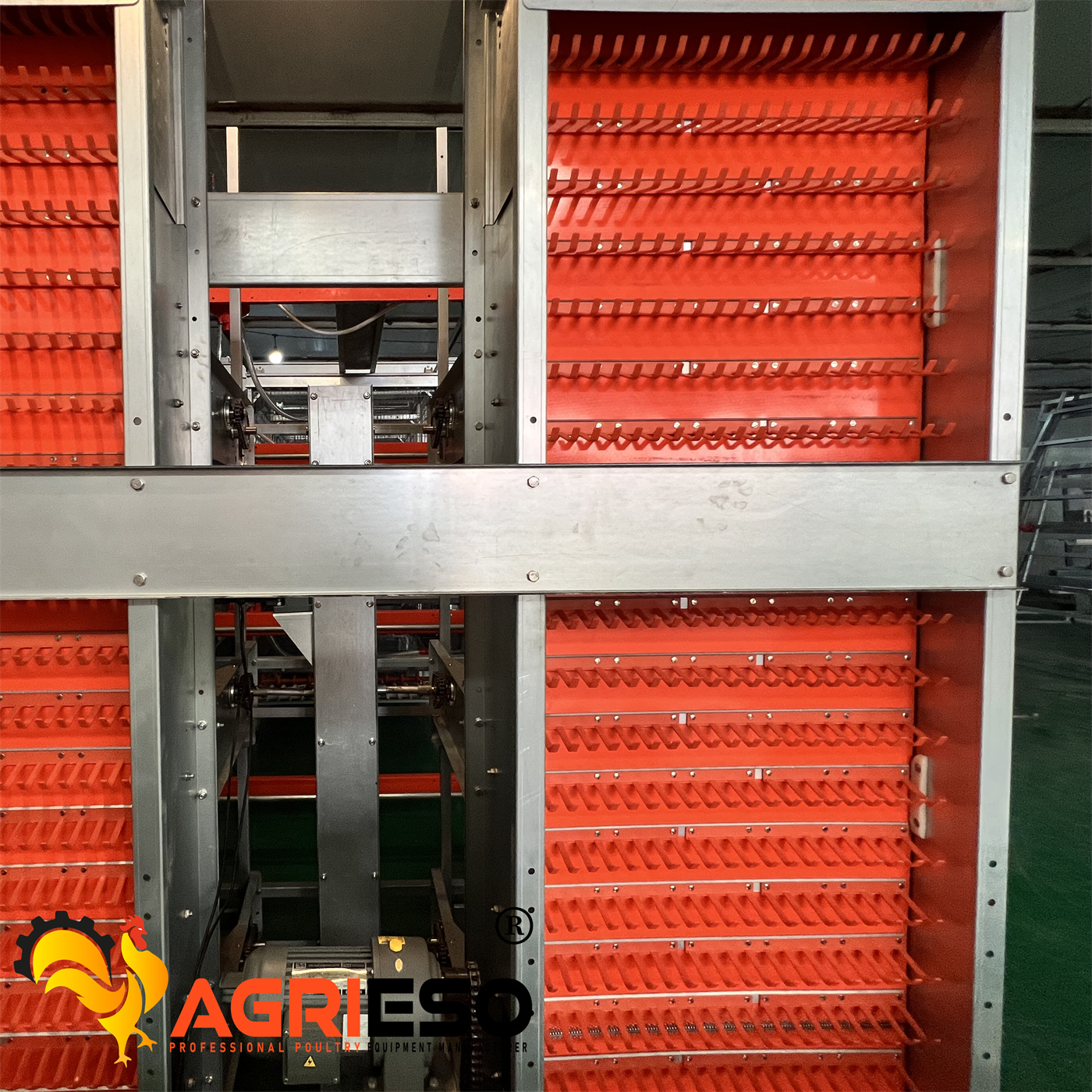

Inquire NowAGRIESO® Layer Cage Systems are engineered for modern commercial egg production, integrating automatic feeding, nipple drinking, egg collection, and manure removal into a single line. Built from hot-dip galvanized steel for corrosion resistance and long service life, the system is available in 3, 4, 5, 6, and 8-tier configurations and can be customized to your house dimensions and bird capacity.
| Item | Specification |
|---|---|
| Model | ESO-L1212 / ESO-L12513 |
| Tier Options | 3, 4, 5, 6, 8 tiers |
| Section Size (L×W) | 1206mm × 1200mm (4 cells/section) |
| Cell Size | 603mm × 600mm |
| Birds per Cell | 8 birds |
| Usable Area per Bird | ≈452 cm²/bird |
| Segment Height | 680mm |
| Cage Mesh Material | Galfan/Aluzinc steel wire (aluminum-zinc alloy coated, ≥275g/m², 10% aluminum content) |
| Wire Diameter | Ø2.0mm (mesh), Ø4.5–5.0mm (cage door), Ø2.0–2.5mm (partition), ±0.05mm tolerance |

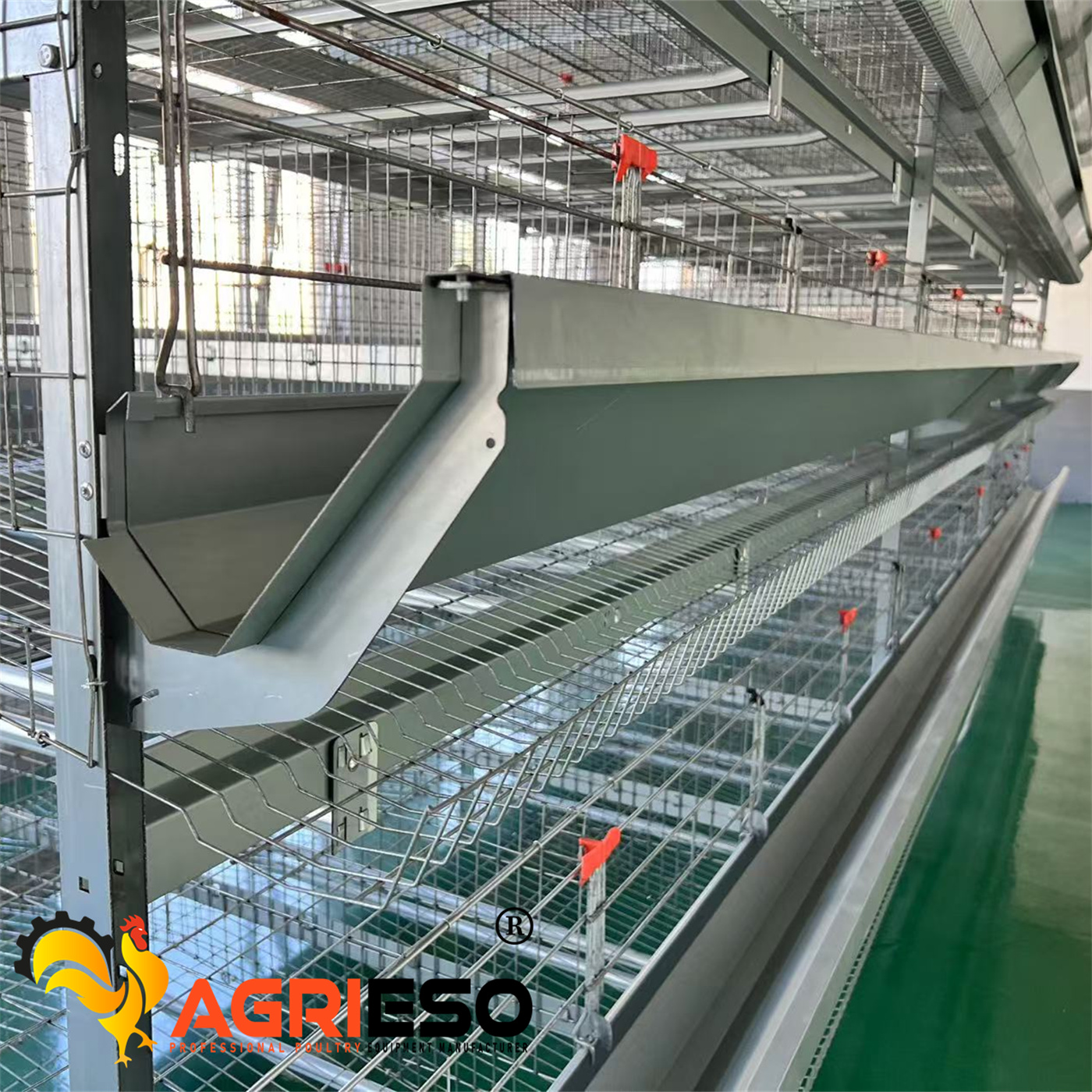

| Feed Trough Material | Zinc-Aluminum-Magnesium (Zn-Al-Mg) steel, ≥275g/m² coating, 1mm thickness |
| Frame Component Thickness | 2mm (legs/support beams), 1.5mm (connecting plates) |
| Drinking Nipples | 2 per segment, 60–80 ml/h flow rate, stainless steel stem |
| Manure Belt | PP material, 1mm thickness |
| Egg Collection | Non-perforated belt, automatic soft-shell/broken egg filtering |
| Fasteners | Stainless steel screws and bolts (corrosion-resistant) |
| Service Life | 20 years |
| Warranty | 3–5 years |
AGRIESO® also provides complete poultry farm solutions, including feeding systems, drinking systems, ventilation, cooling pad systems, feed silos, environmental controllers, and farm accessories —view all solutions →
